DIGITIZE YOUR SCALE WITH SMARTCAN
You can now digitize any existing analog scale using Cardinal Scale’s SmartCan analog-to-digital conversion system.

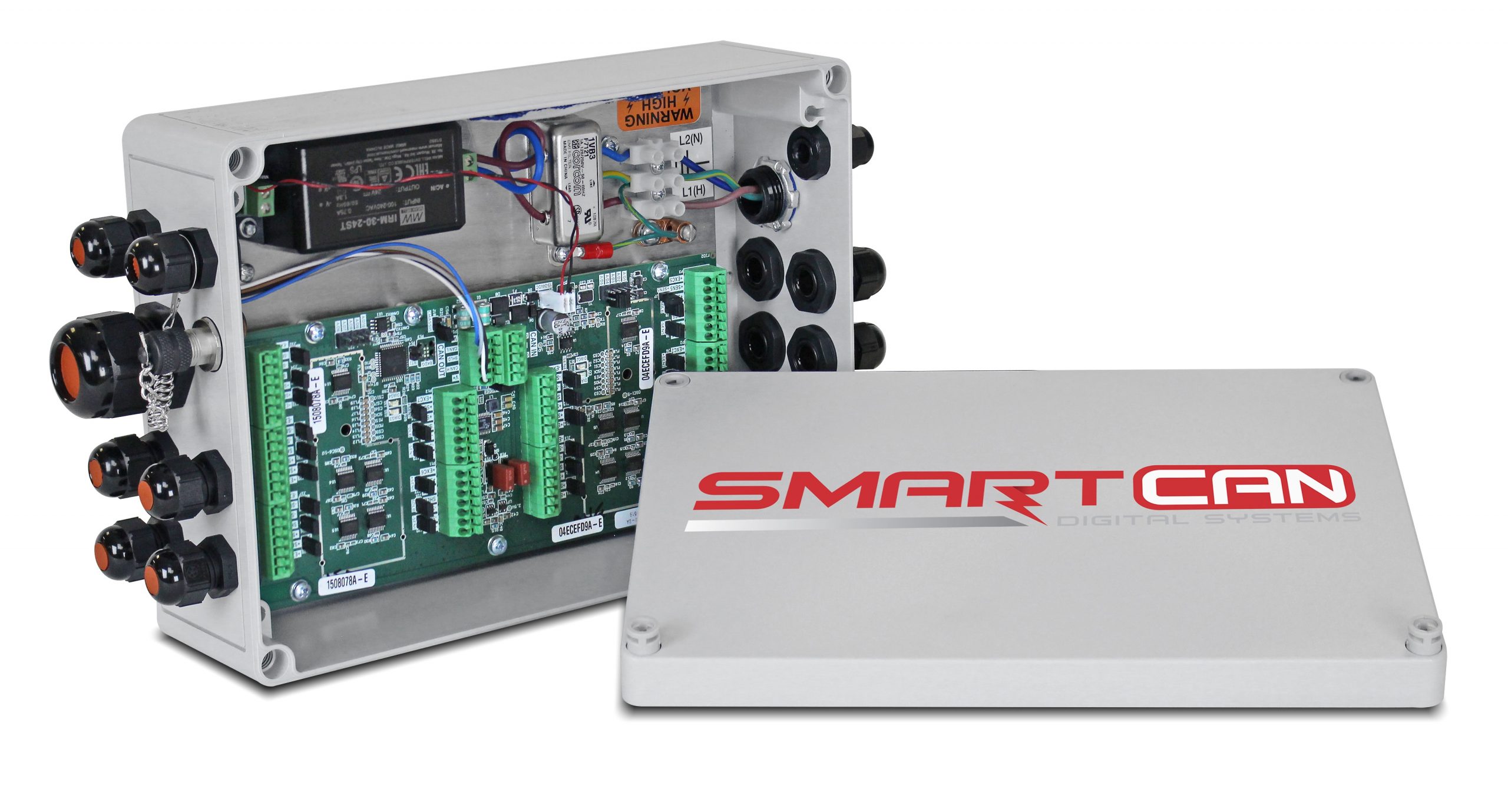

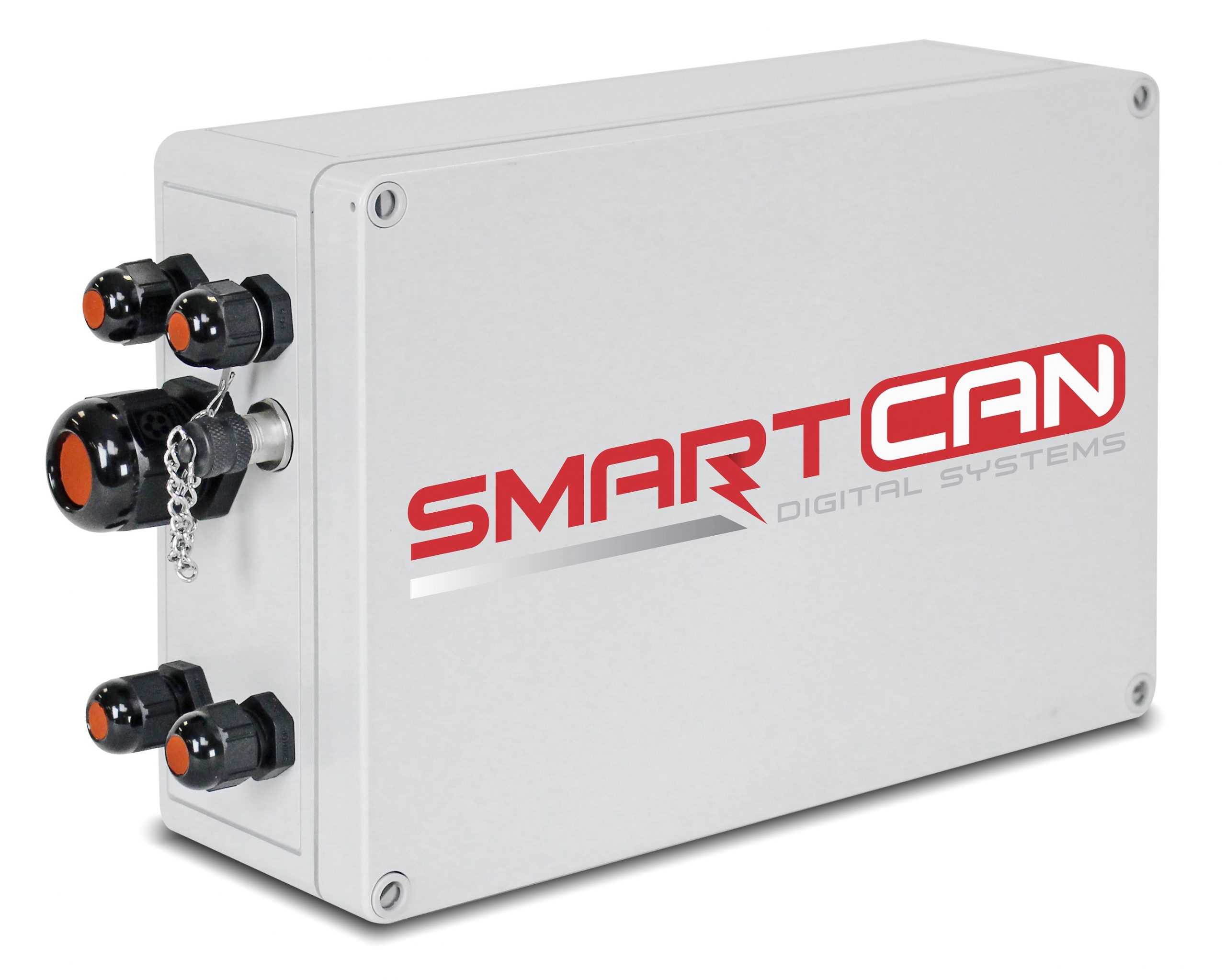

SmartCan is housed in a compact, rugged weatherproof IP66 / NEMA 4 enclosure. The indicator software permits a maximum of 32 load cells that could be used in any combination with SmartCan. There are seven different SmartCan boxes available for a wide range of configurations.
Versatile Applications
SmartCan may be used in a variety of different applications with new and existing truck scales, railroad scales, floor scales, bench scales, and batching systems.
Features
- Perfect for retrofitting existing analog scales or converting analog load cells to a digital system
- Multiple SmartCans can be connected via daisy-chain for multiple-controller systems

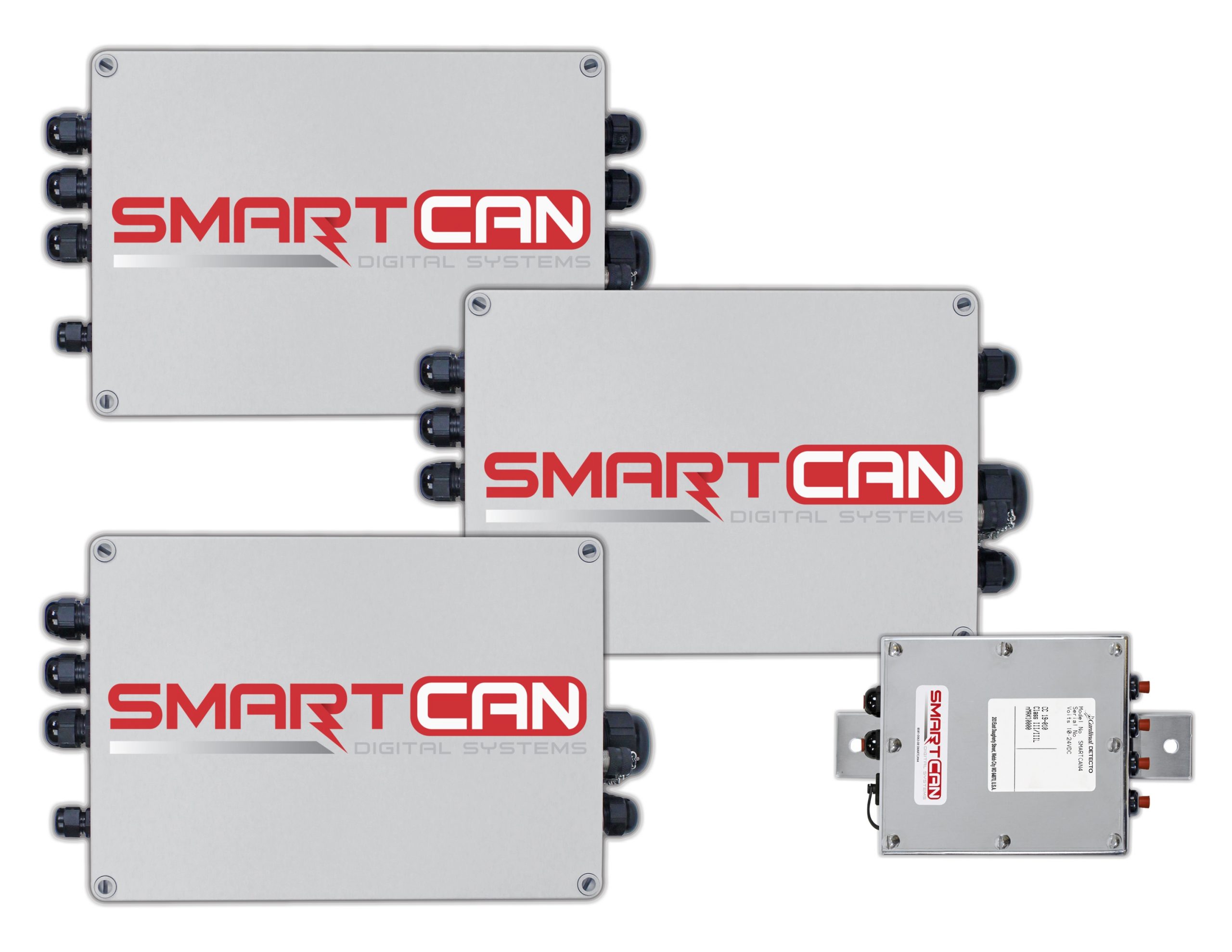

- 7 different SmartCan boxes available for a wide range of configurations
- Analog-to-digital load cell conversion system
- All components housed in a rugged IP66 / NEMA 4 rated enclosure
- Universal mounting brackets for easy field installation
- No power is required in most applications (SmartCan is also available with AC power)
- Compact enclosure size only requires minimal space
- Near real-time load cell failure and fault diagnostics
- Lightning/surge protection
- Ideal for troubleshooting multi-platform truck scales
- Analog-to-digital conversion on individual channels
- NTEP and OIML certified
